Understanding Residential Home Foundation Cracks: Causes, Types, and Solutions

Foundation cracks in residential homes are a common concern for homeowners. These cracks can signal a range of issues, from minor settling to significant structural problems. Understanding the causes, types, and solutions for foundation cracks is essential for maintaining the safety and integrity of your home.

Causes of Foundation Cracks

1. Soil Movement: One of the primary causes of foundation cracks is soil movement. This can occur due to expansive soils that swell when wet and shrink when dry, leading to uneven pressure on the foundation.

2. Poor Construction: Foundations that are not properly designed or constructed can crack more easily. This includes inadequate reinforcement, poor-quality concrete, and insufficient curing.

3. Water Damage: Excess moisture around the foundation can weaken it over time. This can be due to poor drainage, plumbing leaks, or high water tables.

4. Temperature Changes: Extreme temperature fluctuations can cause materials to expand and contract, leading to cracks.

5. Natural Disasters: Earthquakes, floods, and other natural disasters can cause significant foundation damage.

Types of Foundation Cracks

1. Hairline Cracks: These are very thin cracks, often less than 1/16 inch wide. They are usually caused by minor settling and are generally not a cause for concern.

2. Vertical Cracks: These cracks run up and down the wall and are typically due to settling. While they can be serious if they widen over time, they are usually less concerning than horizontal cracks.

3. Diagonal Cracks: Diagonal cracks can indicate uneven settling of the foundation. They often appear at an angle and can be more serious if they are wide or growing.

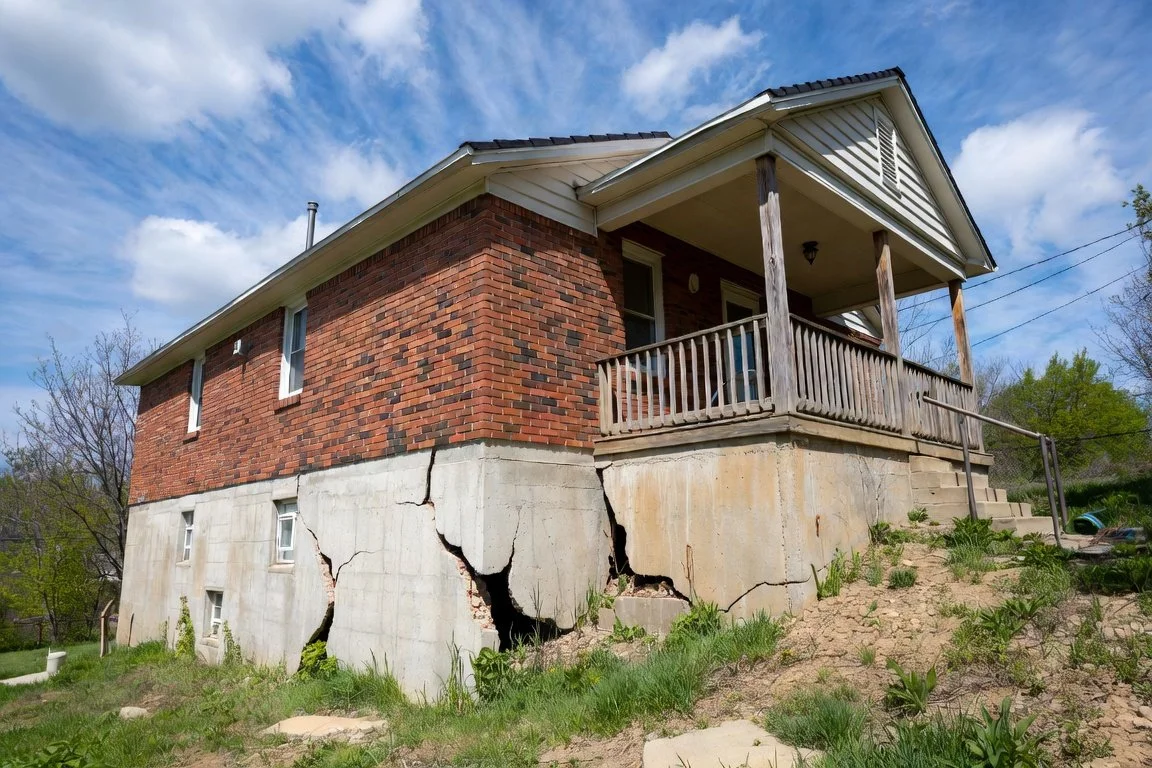

4. Horizontal Cracks: These cracks are usually the most serious and indicate significant pressure on the foundation, often from soil movement. Horizontal cracks can compromise the structural integrity of the foundation and require immediate attention.

5. Stair-Step Cracks: Found in brick or concrete block foundations, these cracks follow the mortar joints and can indicate differential settling or soil movement.

Solutions for Foundation Cracks

1. Inspection and Monitoring: The first step is to have a professional inspect the cracks. Monitoring the cracks over time can help determine if they are stable or worsening.

2. Sealing Cracks: Small, non-structural cracks can often be sealed with epoxy or polyurethane foam injections to prevent water infiltration and further damage.

3. Foundation Piering: For more significant settling issues, foundation piering can be used to stabilize and lift the foundation. This involves driving steel piers into the ground to support the foundation.

4. Slabjacking: Also known as mudjacking, this technique involves pumping a grout mixture under a sunken slab to lift it back into place.

5. Soil Stabilization: Improving the soil conditions around the foundation can help prevent future cracks. This might include installing proper drainage systems, using moisture barriers, or treating expansive soils.

6. Structural Repairs: For severe cracks, structural repairs may be necessary. This can include reinforcing the foundation with steel or carbon fiber, rebuilding damaged sections, or adding additional support.

Preventive Measures

1. Proper Drainage: Ensure that your home's drainage system directs water away from the foundation. This includes maintaining gutters and downspouts and grading the landscape to slope away from the house.

2. Regular Maintenance: Regularly inspect your foundation for cracks and other signs of damage. Address small issues before they become major problems.

3. Control Moisture Levels: Maintain consistent moisture levels around your foundation. Avoid planting large trees too close to the house, as their roots can affect the soil moisture.

4. Professional Inspections: Have a structural engineer or foundation specialist inspect your home periodically, especially if you notice any signs of foundation problems.

Foundation cracks can be alarming, but with proper understanding and timely intervention, many issues can be resolved before they become serious. Regular maintenance, professional inspections, and addressing underlying causes such as poor drainage or soil movement are key to preserving the integrity of your home's foundation. If you notice any cracks in your foundation, it's important to act quickly to prevent further damage and ensure the long-term stability of your home.
